Product Characteristics

1.slide opening .

2.The door board can be translated and overlapped in the cabinet without occupying the space outside the cabinet.

3.When the door is closed, the door is flat and the gap can be less than 3mm.

4.Open and close running smoothly and no noise,  two-way impact buffer damping.

5.The kit is pre-installed before sending ,so the installation is simple and standardized .we support installment after service which have one to one guidance.

6.No lower track design ,convenience to cleaning

Application Scenarios

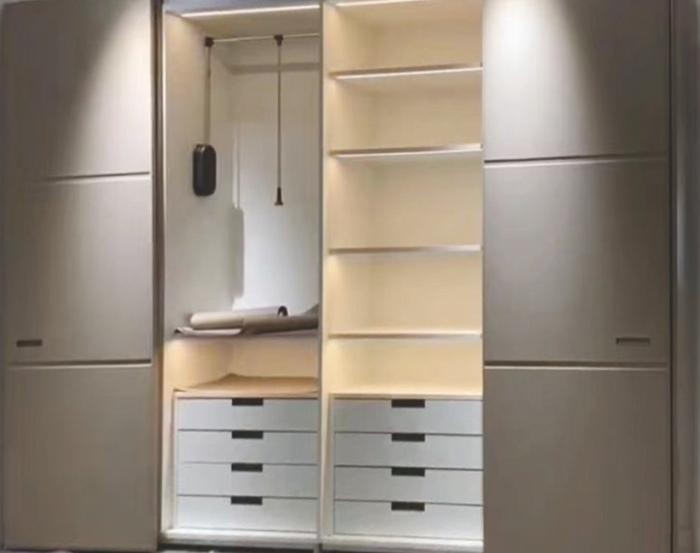

TV background wall, indoor wardrobe, open wine cabinet, etc

Standard specification

Door width within 700mm (track length within 1400mm), no lower rail design, easy to clean the ground;

Door width within 800mm (track length within 1600mm), super thick track, two-way damping buffer, automatic suction;

Door width within 900mm (track length within 1800mm), super thick track, two-way damping buffer, automatic suction;

Door width within 1000mm (track length within 2000mm), super thick track, two-way damping buffer, automatic suction;

Door width within 1200mm (track length within 2400mm), super thick track, two-way damping buffer, automatic suction。

Some parameters

The maximum width of the cabinet door is 1200mm, the maximum height is 2800, and the thickness of the door is 45mm (including the handle height ),It will use dark hand if more than 45mm.

The net depth of the cabinet is not less than 230mm, and the top of the cabinet is left empty: 55mm high *220mm deep(top sliding hardware space) .the cabinet floor leg leave blank as 55mm high *160mm deep ( rail sliding hardware space).

Finished production condition before sending ,customer can easy to install with some screws only.Cabinet door can be opened single, can be opened without interference.When Standard product is  copy3.0,please leave 100mm height of flexible board for test space.

While 3.0 Professional customized copy no need leave test space .There ‘s no  storage for customized copy .need consider the producing time when place order .

Standard color are silver and powder black,other color can be customized.
