Product Characteristics

1.Application on corner cabinet such special space.

2.Solid and beautiful.

Application Scenarios

Hanging cabinet, ordinary cabinet, floor cabinet, corner cabinet, wardrobe, TV cabinet, cloakroom partition, interior door.

Specification

Door Height within 1000mm

Door Height from 1000-1499mm

Door Height from 1500-1999mm

Door Height within 2000-2399mm

Door Height within2400-3000mm

some parameters

Suitable for all regular install place especially on angle cabinet and opening corner cabinet.

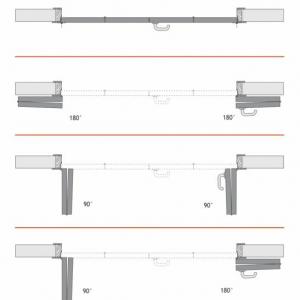

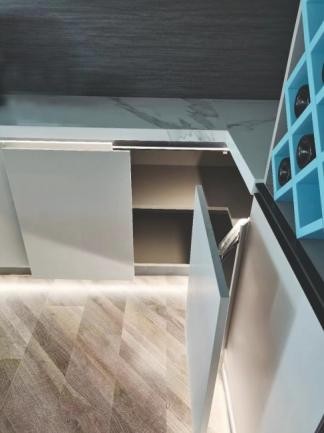

Opening corner cabinet: It will be slide and save space.

This light hinge suitable for Door weight within 30kgs.

Door wide among 350mm to 600mm,Door thickness :15-25mm,door height within 3000mm.

Door height within 1000mm set with  2 hinges.

Door height within 1500mm set with 3 hinges

Door height within 2000mm set with 4 hinges

Door height within 2400mm set with 5 hinges

Door height within 3000mm set with 6 hinges.

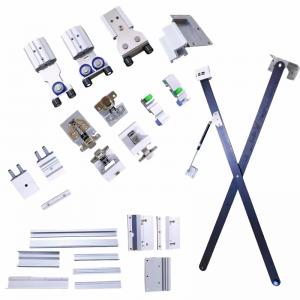

The aluminum connected balance bar is configured according to the corresponding height.(no need it if inner-door within 1000mm)
