Product Characteristics

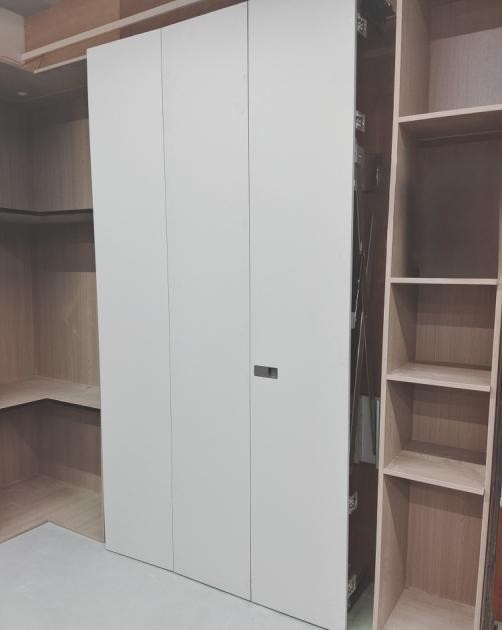

1、The door can be hidden in the storage side of the cabinet and does not occupy the space outside of the cabinet .

2、When the door is closed, the door is flat and the gap can be less than 3mm.

3、 Open and close running smoothly and no noise,  two-way impact buffer damping.

4、 High strength stainless steel and high iron aluminum material, the surface showing solid durable beautiful.

5、The kit is pre-installed before sending ,so the installation is simple and standardized .we support installment after service which have one to one guidance.

Application Scenarios

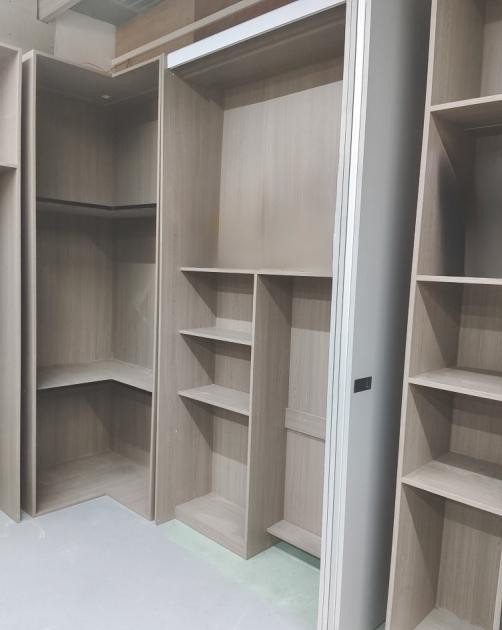

。Wardrobes, cabinets, display cases, audio storage, washing storage, administrative corridors, etc.

Standard specification

Door width within 800mm (maximum customized 900mm) Door height within 2700mm (maximum customized 3500mm)

·Door thickness 30mm(if customize can up to 65mm)

Single door weight is 30kgs(customized can up to 65kgs).

Some parameters

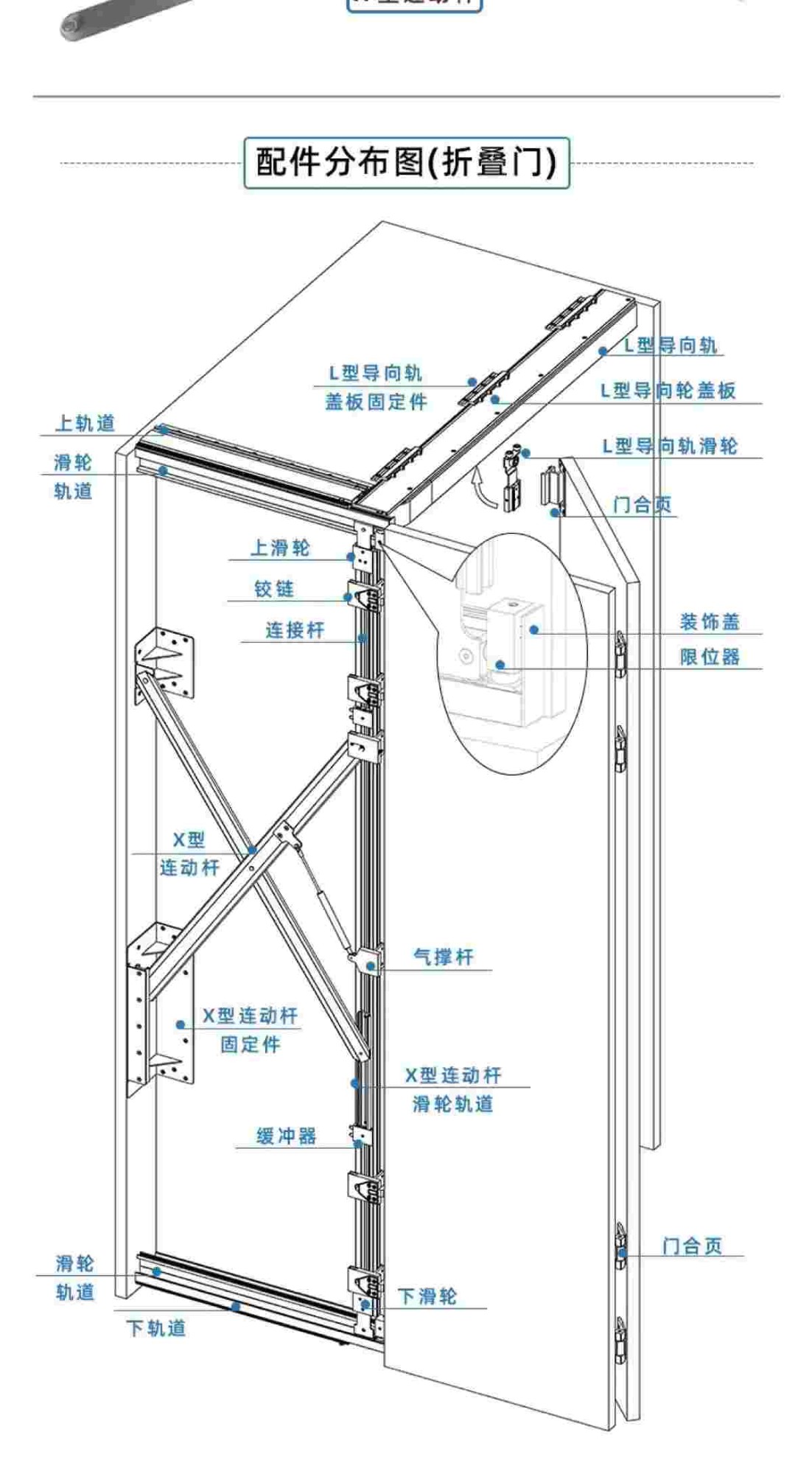

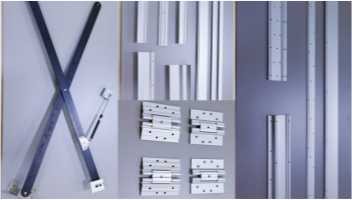

Suitable for wooden doors, metal frame doors,.Standard top-mounted pendant(base on the condition that with a top board or cabinet);clamping accessories as optional(base on the condition that no top board or cabinet).three optional will be hanging accessories.

Three doors with one kit .

Door thickness 18mm inner storage area wide is145mm( Door thickness 22mm inner storage area wide is155mm ;Door thickness 25mm inner storage area wide is160mm ). All hard ware install in the inside board and top board, inner side board make 80mm retraction .(Floor cabinet can make 15-70mm inner retraction. Outside board as optional,It will use screw to fix it without outside board .professional connection hardware,Standard color are silver and powder black,other color can be customized.
