Product Characteristics

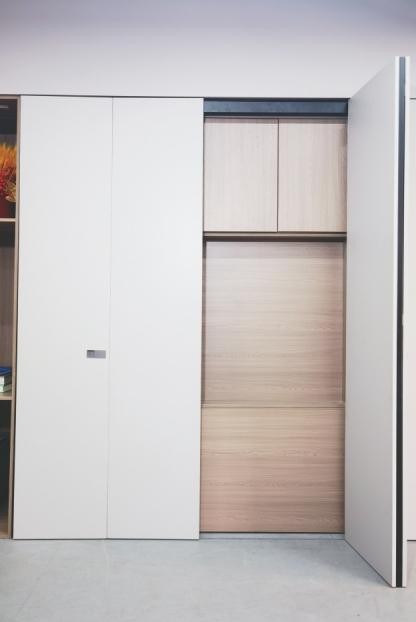

The door can be hidden in the storage side of the cabinet and does not occupy the space outside of the cabinet .

When the door is closed, the door is flat and the gap can be less than 3mm.

When the door is closed, the door is flat and the gap can be less than 3mm.

Small opening path ,no need door pull.

Standardize and easy to install ,all kits are pre-installed before sending,only turn a few screws can be finish installment.

The front and back of the door panel up and down left and right three-dimensional adjustable, simple structure.The door can be front-back up-down left-right three-dimension adjusted.simple structure.

No lower track design ,convenience to cleaning .

Application Scenarios

Wardrobes, cabinets, display cases, audio storage, washing storage, administrative corridors, etc.

Standard specification

Door width within 800mm (maximum customized 900mm) Door height within 2700mm (maximum customized 3500mm)

Door thickness 30mm(if customize can up to 40mm)

single door weight is 30kgs(customized can up to 65kgs).

some parameters

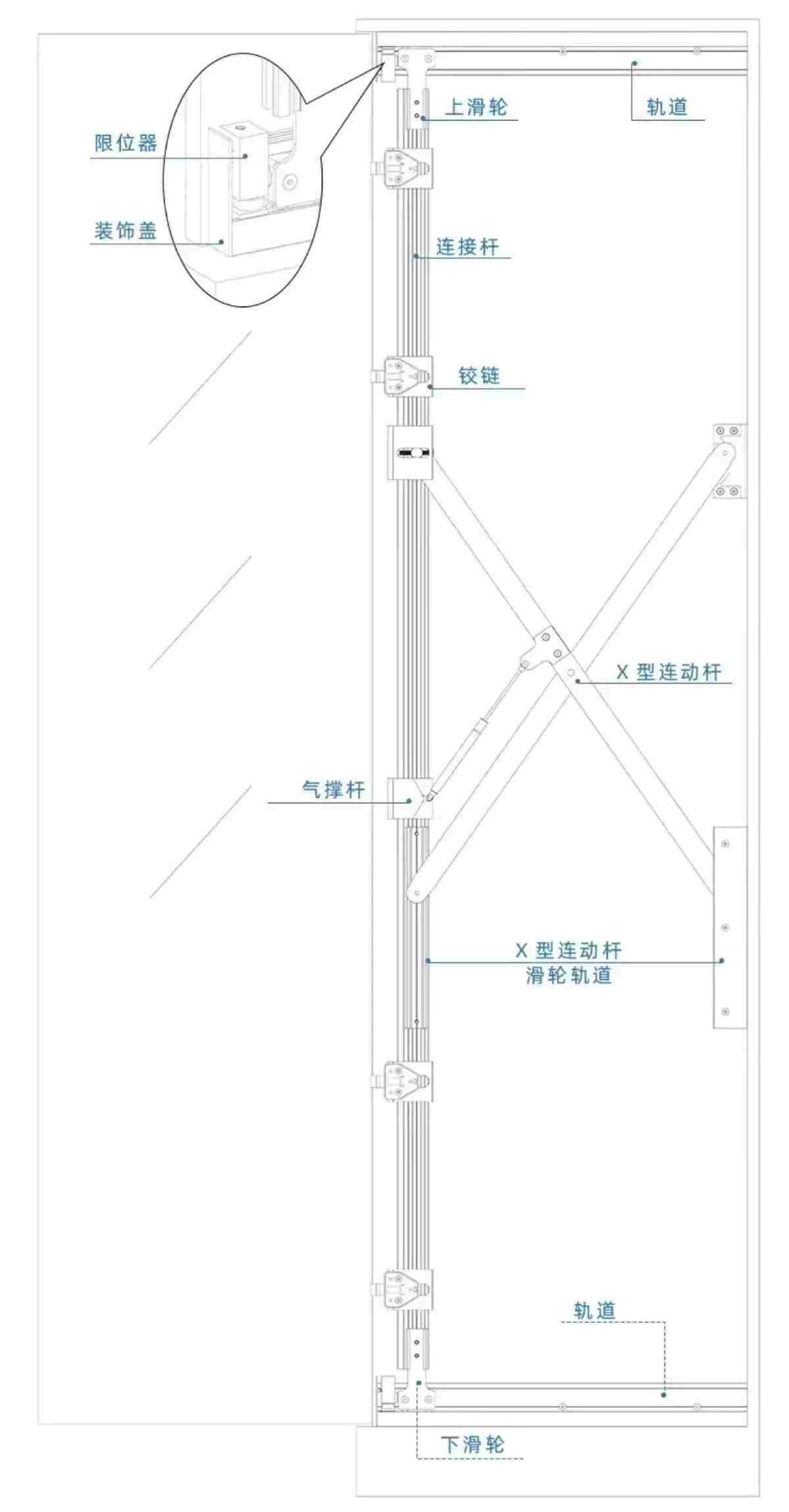

Suitable for wooden doors, metal frame doors, etc .Standard top-mounted pendant(base on condition that with a top board or cabinet);clamping accessories as optional(base on the condition that no top board or cabinet).three optional will be hanging accessories.

Two doors across one kit ,such four doors across 2 kits.

Door thickness 30mm inner storage area wide 135mm,all hard ware install in the inside board and top board,only few screw install ,no need outside board.with professional connection hardware,Standard color are silver and powder black,other color can be customized.
