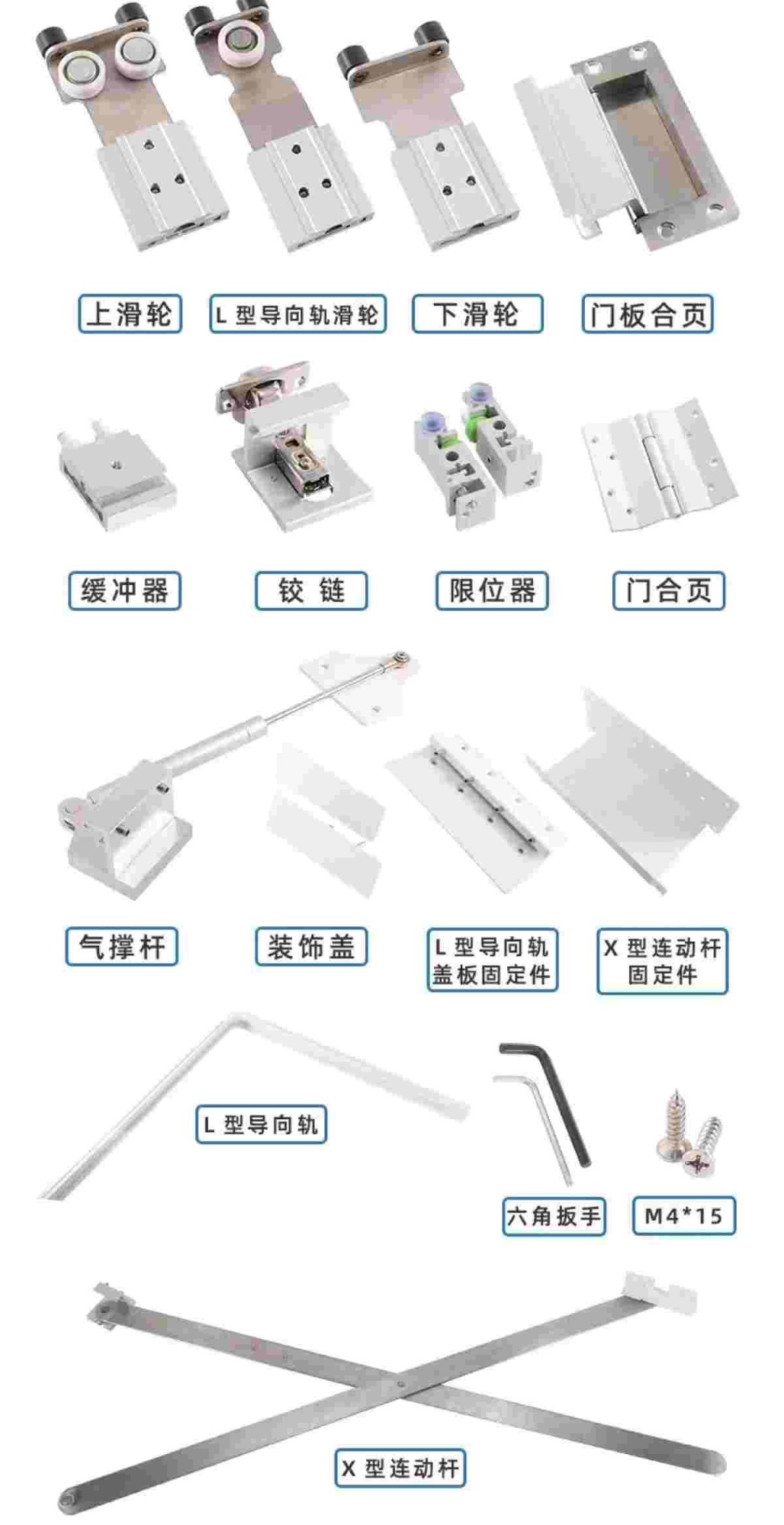

Pivot Sliding Door Hardware Kit(Bus door solution)

Pivot Sliding Door Hardware Kit(Bus door solution)
  • Pivot Sliding Door Hardware Kit(Bus door solution)
  • Pivot Sliding Door Hardware Kit(Bus door solution)
  • Pivot Sliding Door Hardware Kit(Bus door solution)
  • Pivot Sliding Door Hardware Kit(Bus door solution)

Short Description:

This pivot sliding door can be hidden in the storage side of the cabinet and does not occupy the space outside of the cabinet ....


Product Details

Product Tags

Product Characteristics

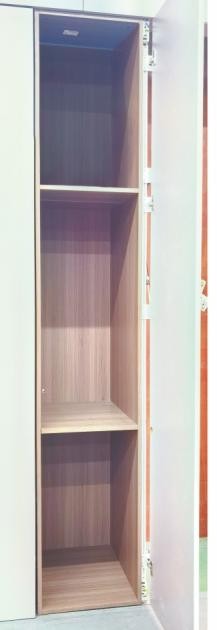

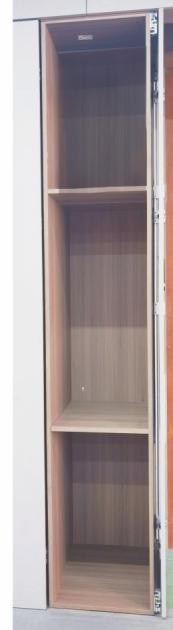

1、The door can be hidden in the storage side of the cabinet and does not occupy the space outside of the cabinet .

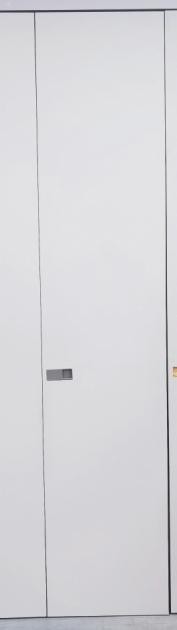

2、 When the door is closed, the door is flat and the gap can be less than 3mm.

3、 Open and close running smoothly and no noise,  two-way impact buffer damping.

4、 High strength stainless steel and high iron aluminum material, the surface showing solid durable beautiful.

5、The kit is pre-installed before sending ,so the installation is simple and standardized .we support installment after service which have one to one guidance.

Application Scenarios

Wardrobes, cabinets, display cases, audio storage, washing storage, administrative corridors, etc.

some parameters

Suitable for wooden doors, extremely narrow frame doors, metal frame doors, etc.

one Door one set .double door across two sets .

Door thickness 30mm inner storage area wide 65mm,all hard wares are installed on the inner board and top board,Inner board retraction 2mm.outside board optional,set with professional connecting hard ware,its optional install with push latch (no need install pull.Standard color are silver and powder black,other color can be customized.

Standard specification

Door width within 800mm (maximum customized 900mm) Door height within 2700mm (maximum customized 3500mm)

Door thickness 30mm(if customize can up to 65mm)

single door weight is 30kgs(customized can up to 65kgs).
